Absolute Safety and Extreme Strength for Industrial and Offshore Lifting Operations

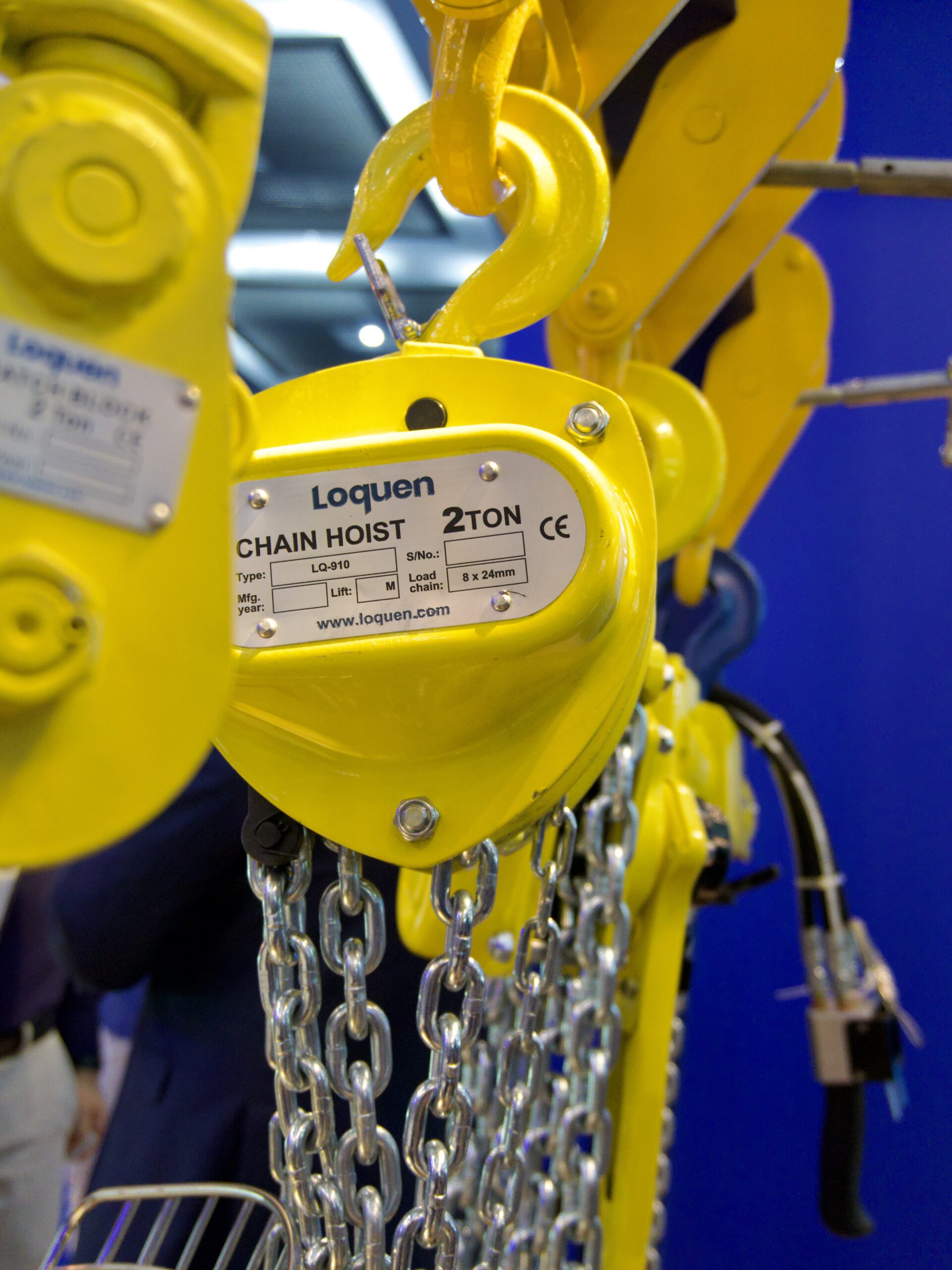

The Loquen chain hoist was designed to meet the demands of the most demanding sectors of the global market. Developed according to the strictest engineering standards, it combines mechanical robustness with ease of operation, making it the definitive choice for vertical handling of heavy loads in industrial and offshore environments.
1. Competitive Performance Advantages
- Ultra-Smooth Operation with Reduced Effort: Its precision-machined reduction gears and load sheave are perfectly synchronized to ensure friction-free engagement. This significantly reduces the physical effort required from the operator, maximizing jobsite productivity.
- Protection Against Extreme Environments: Constructed with weather-resistant materials, it operates efficiently and safely at temperatures ranging from -10 °C to +50 °C and in environments with up to 100% relative humidity, making it ideal for highly saline marine atmospheres.
- Sustainability and Active Safety (Non-Asbestos): In compliance with strict international environmental and occupational health requirements, the friction discs of the braking system are completely asbestos-free.
- Intelligent Overload Protection (Optional): The equipment can be factory-configured with a dynamic overload limiter. This safety device acts precisely when the load exceeds the range of 1.3 to 1.8 times the rated capacity, helping to prevent structural accidents.
2. Integrated Safety Engineering

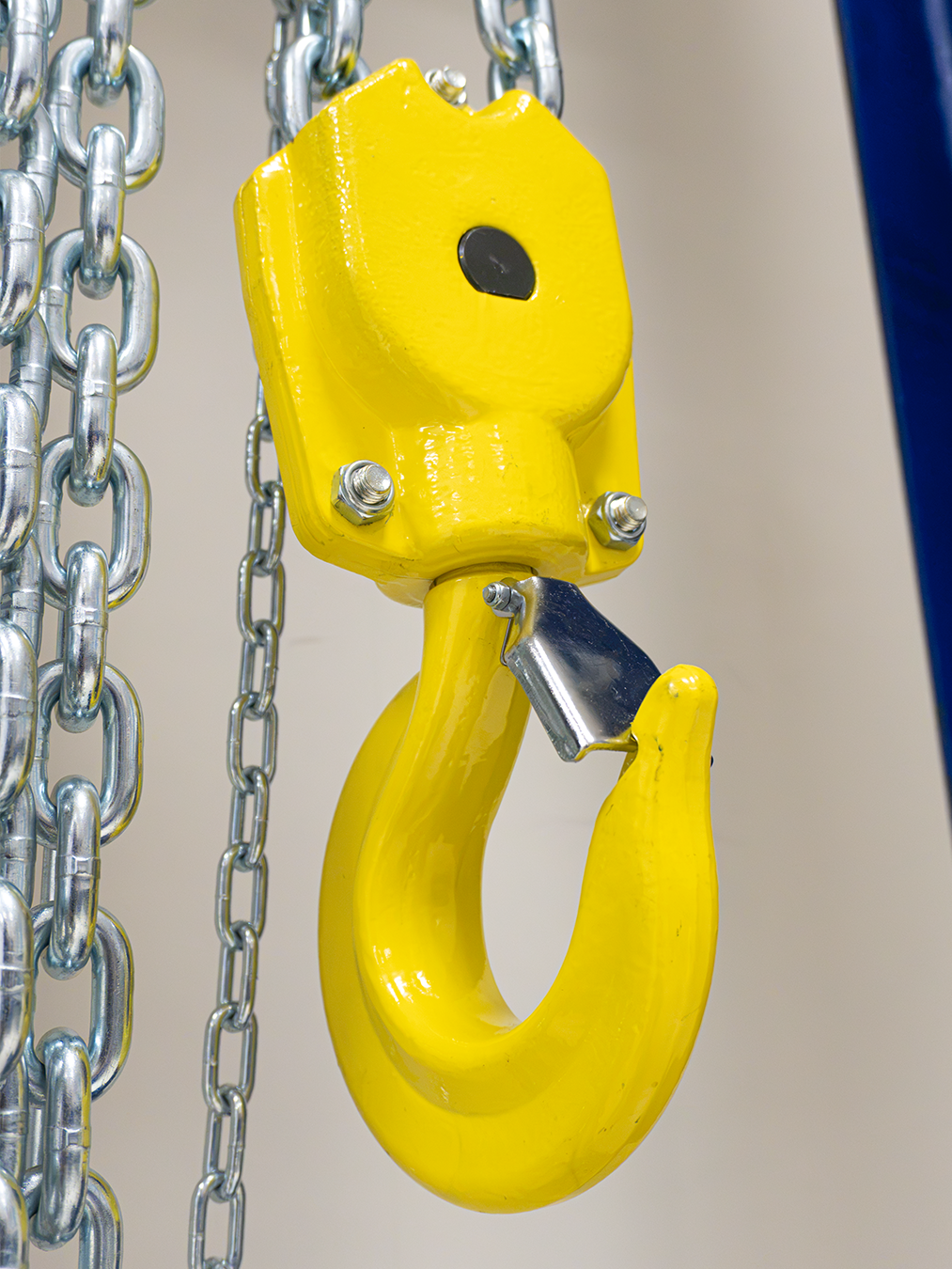

- Anti-Breakage Safety Hooks: Manufactured from forged alloy steel with heat treatment, the hooks of the Loquen chain hoist are designed to gradually deform in the event of extreme overload, providing a visual safety warning to the operator rather than experiencing sudden breakage.

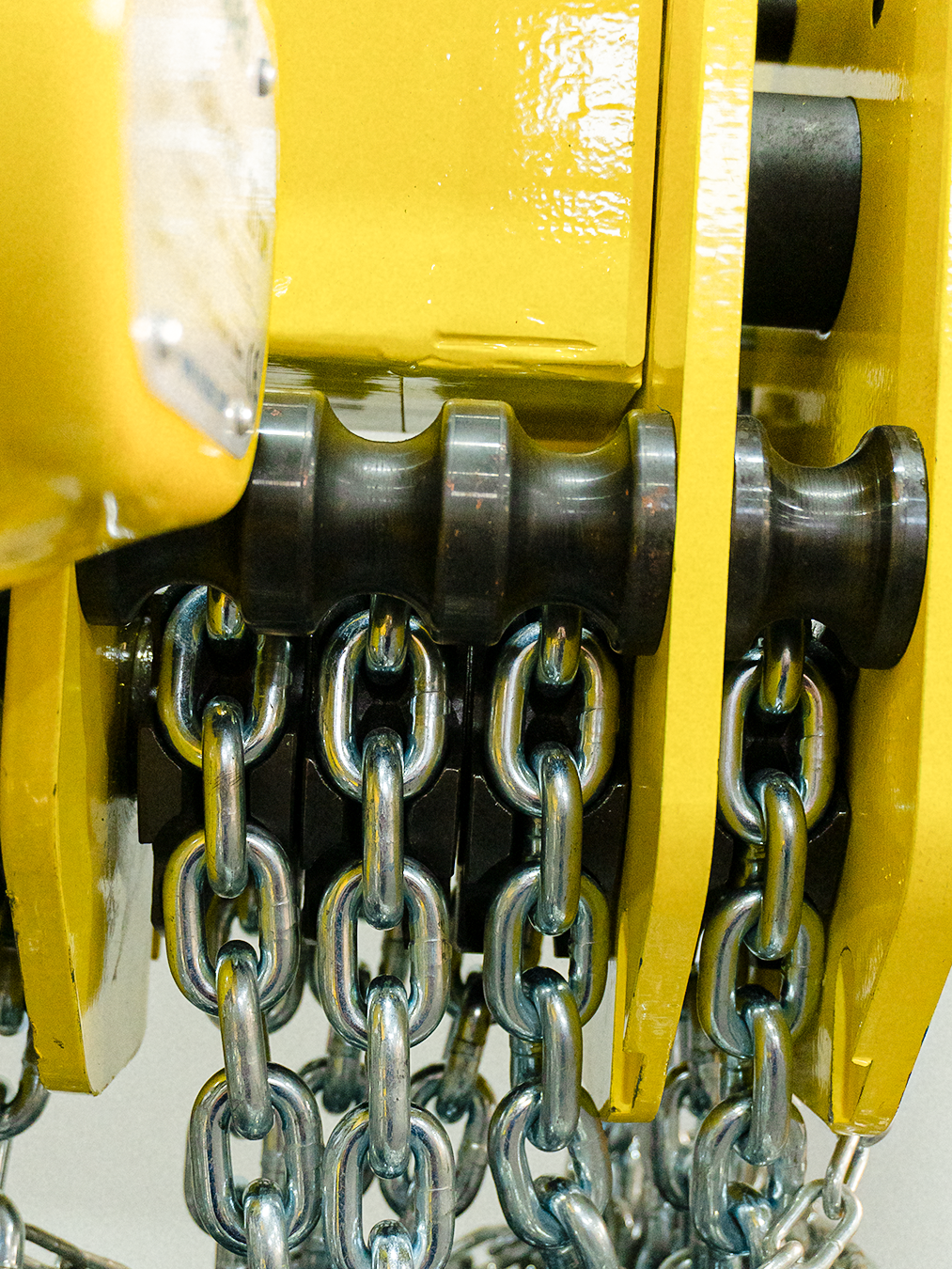

- High-Resilience Load Chain: Load chains are precisely calibrated and sized according to each lifting capacity, ensuring flexibility, superior mechanical strength, and long service life under the heaviest loads.

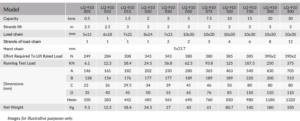

3. Load Range and Technical Specifications
The chain hoist range covers a wide variety of projects, offering excellent self-weight distribution and versatility through multiple chain falls:
| Capacity (WLL) | Strands of load chain | Load chain | Effort Required To Lift Rated Load | Net Weight | Running Test Load (Proof Load) |
|---|---|---|---|---|---|
| 0,5 t | 1 | 5 x 15 mm | 249 N | 9,3 kg | 6,1 kN |
| 1,0 t | 1 | 6 x 18 mm | 284 N | 12,3 kg | 12,3 kN |
| 1,5 t | 1 | 7 x 21 mm | 308 N | 18,4 kg | 18,4 kN |
| 2,0 t | 1 | 8 x 24 mm | 343 N | 24,5 kg | 24,5 kN |
| 3,0 t | 2 | 7 x 21 mm | 343 N | 27,0 kg | 36,8 kN |
| 5,0 t | 2 | 10 x 30 mm | 380 N | 43,0 kg | 62,5 kN |
| 7,5 t | 3 | 10 x 30 mm | 380 N | 61,0 kg | 93,8 kN |
| 10,0 t | 4 | 10 x 30 mm | 385 N | 80,7 kg | 125,0 kN |
| 15,0 t | 6 | 10 x 30 mm | 385 N | 140,0 kg | 187,5 kN |
| 20,0 t | 8 | 10 x 30 mm | 390×2 N | 180,0 kg | 250,0 kN |
| 30,0 t | 12 | 10 x 30 mm | 390×2 N | 350,0 kg | 375,0 kN |
4. Why Choose Loquen Lifting Solutions?
Loquen stands out by providing material handling equipment that exceeds expectations in terms of robustness and safety. With a specialized technical team, we offer complete solutions that help reduce the total cost of ownership through low maintenance requirements and highly durable components.
