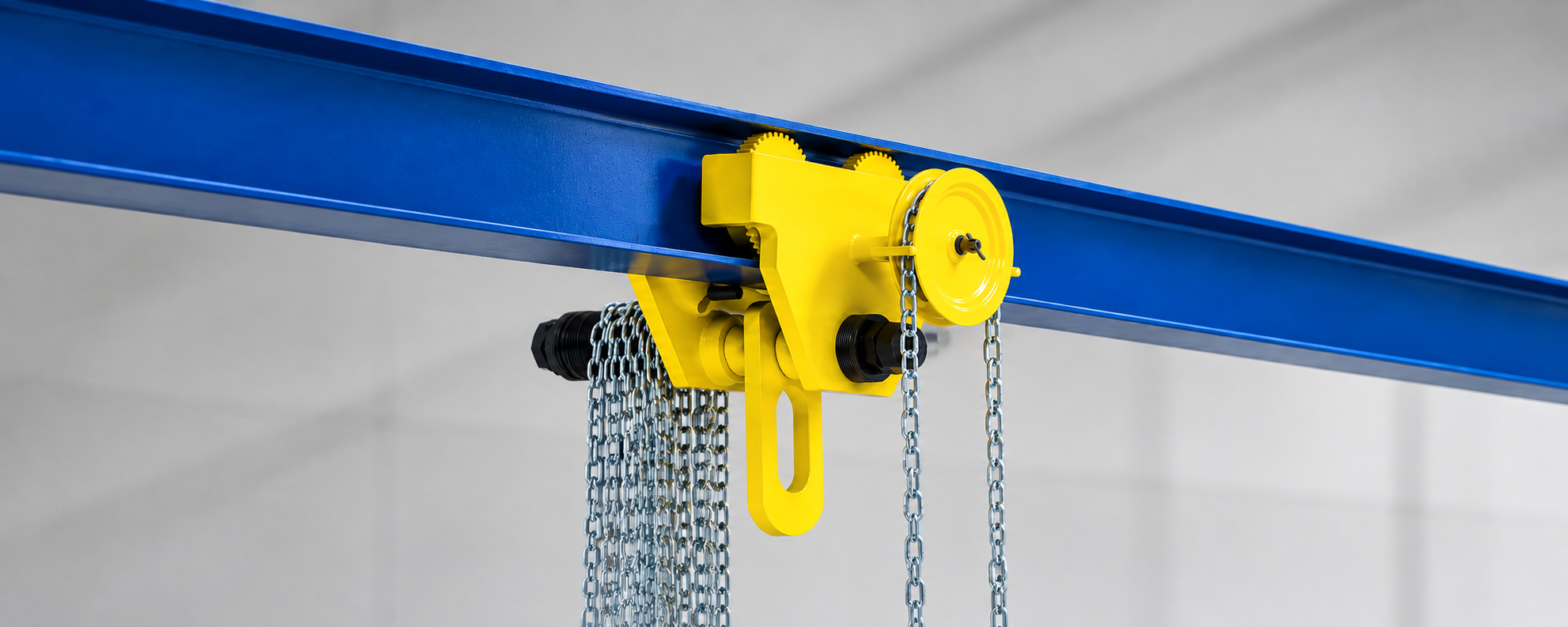

Smooth, Precise, and Safe Linear Movement on Steel Beams
The Loquen Geared Trolley is the ultimate solution for load transportation and hoist attachment on industrial and offshore steel beams and structures. Designed to withstand harsh working conditions, it transforms the horizontal movement of heavy loads into a smooth, safe operation requiring minimal physical effort.
1. Competitive Performance Advantages
- High-Precision Load Positioning: Equipped with reduction gearing and a high-strength manual operating chain, the Geared Trolley enables precise and controlled positioning of the load along the entire length of the beam.
- Versatility and Customizable Dimensional Adjustment: Featuring an adjustable axle system using spacer washers, the equipment adapts perfectly to a wide range of beam profiles (I or H), with flange widths ranging from 64 to 220 mm, providing maximum flexibility for your infrastructure.
- Smooth and Durable Rolling Performance: Its machined wheels with a tapered profile are designed to roll effortlessly along the beam flanges, while high-efficiency, shielded ball bearings prevent jamming and require minimal preventive maintenance.
- Centralized Suspension Eye: Designed to distribute the load symmetrically at the center of the supporting axle, ensuring that attached hoists remain fully vertical and properly balanced during operation.
2. Integrated Safety Engineering
- Strict Proof Load Testing: To ensure structural integrity and operator safety in the field, each Geared Trolley undergoes a proof load test equivalent to 1.25 times its rated capacity before being approved for use.
- Reinforced Side Plates: The housing and bilateral structural plates are manufactured from high-thickness structural steel, providing natural protection against accidental impacts to the wheels and helping prevent derailment from the beam.
- Anti-Drop Devices and End Stops: Designed to operate in conjunction with safety stops installed at the ends of the runway beam, minimizing the risk of dynamic collisions or the trolley falling from the beam ends.
3. Load Range and Technical Specifications
The Loquen Geared Trolley range offers one of the broadest capacity ranges available in the domestic market, covering applications from light-duty handling to heavy-duty load movement:
| Working Load Limit (WLL) | Beam Flange Width Range | Proof Load |
|---|---|---|
| 0.5 t | 64–220 mm | 0.625 t |
| 1.0 t | 64–220 mm | 1.25 t |
| 2.0 t | 64–220 mm | 2.50 t |
| 3.0 t | 64–220 mm | 3.75 t |
| 5.0 t | 64–220 mm | 6.25 t |
| 10.0 t | 64–220 mm | 12.50 t |
| 20.0 t | 64–220 mm | 25.00 t |
| 30.0 t | 64–220 mm | 37.50 t |
| 50.0 t | 64–220 mm | 62.50 t |
(Note: The specific beam flange width range and adjustable minimum curve radius vary according to the physical dimensions of the selected model, from 0.5 t to 50 t.)
4. Why Choose Loquen Rigging Solutions?
Investing in a Loquen Geared Trolley means ensuring high mechanical durability and excellent cost-effectiveness. Our equipment significantly reduces operational downtime caused by wear and provides full compatibility with manual, pneumatic, and electric hoists, optimizing assembly and logistics costs in industrial applications.
Does your operation demand the highest level of horizontal load-handling engineering? Contact our technical sales and rigging team to find the ideal Geared Trolley and beam specifications for your project.
