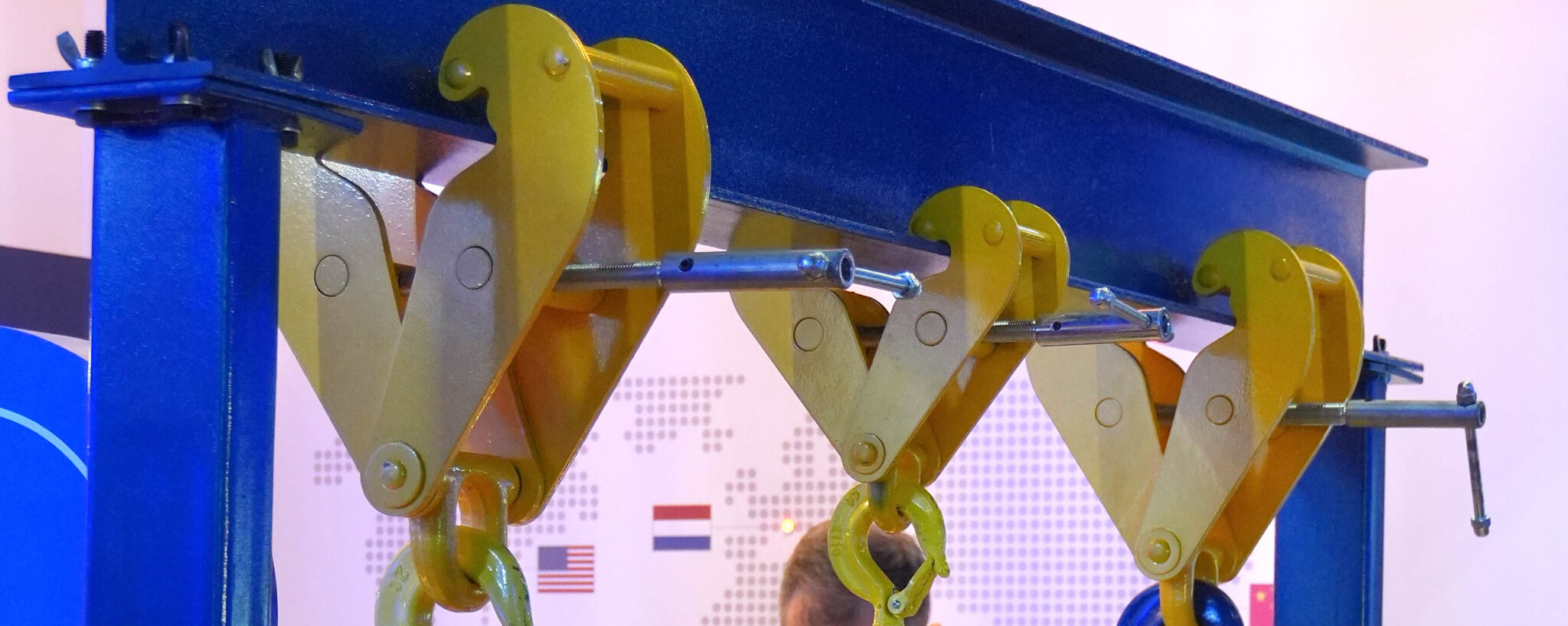

Loquen Beam Clamp

Fast, Safe, and Versatile Anchorage for Rigging on Steel Structures

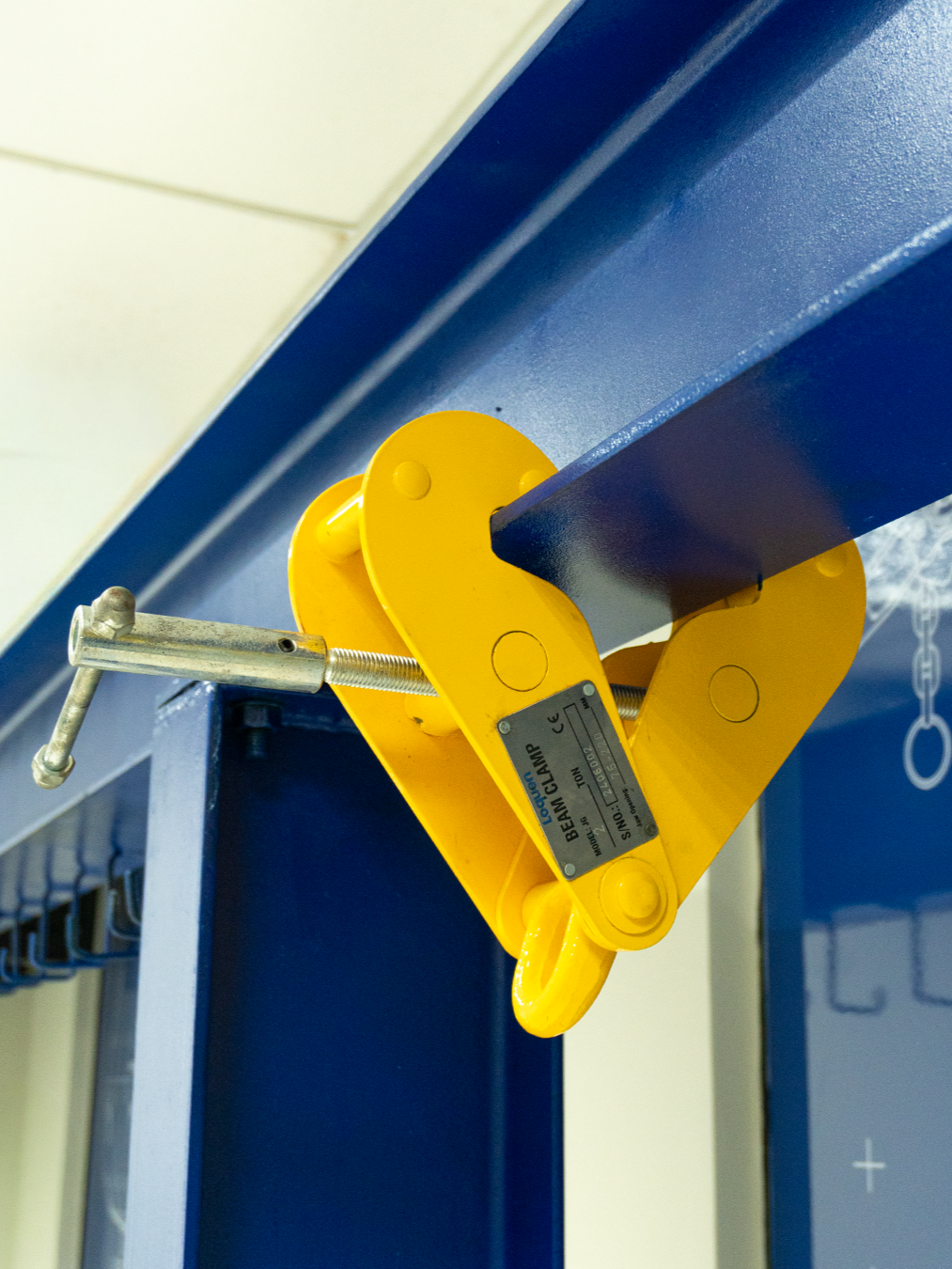

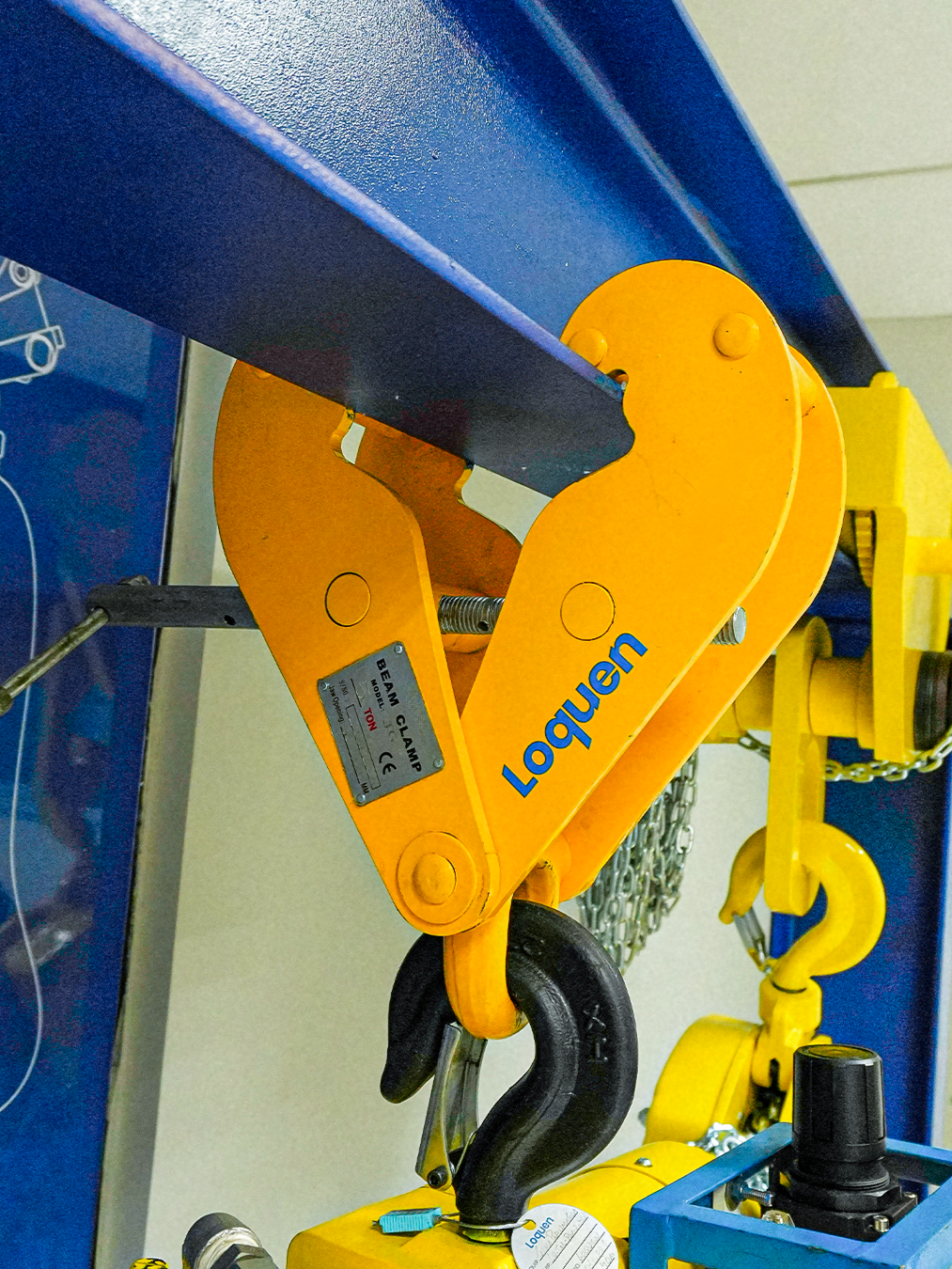

The Loquen Beam Clamp is an ideal solution for creating temporary or permanent anchorage points on beams and steel structures. Designed to withstand demanding load-handling and rigging operations in industrial and offshore environments, it provides high clamping force and stability for the safe attachment of manual, electric, or pneumatic hoists.






1. Competitive Performance Advantages

  • Fast Installation Without Welding or Drilling: Its adjustable threaded spindle clamping system allows quick manual installation and removal on steel beam profiles, without requiring structural modifications to the building or structure.
  • Wide Jaw Opening Range: With an adjustable opening ranging from 75 to 320 mm, depending on the selected model, it precisely accommodates a wide variety of flange widths found in industrial beams.

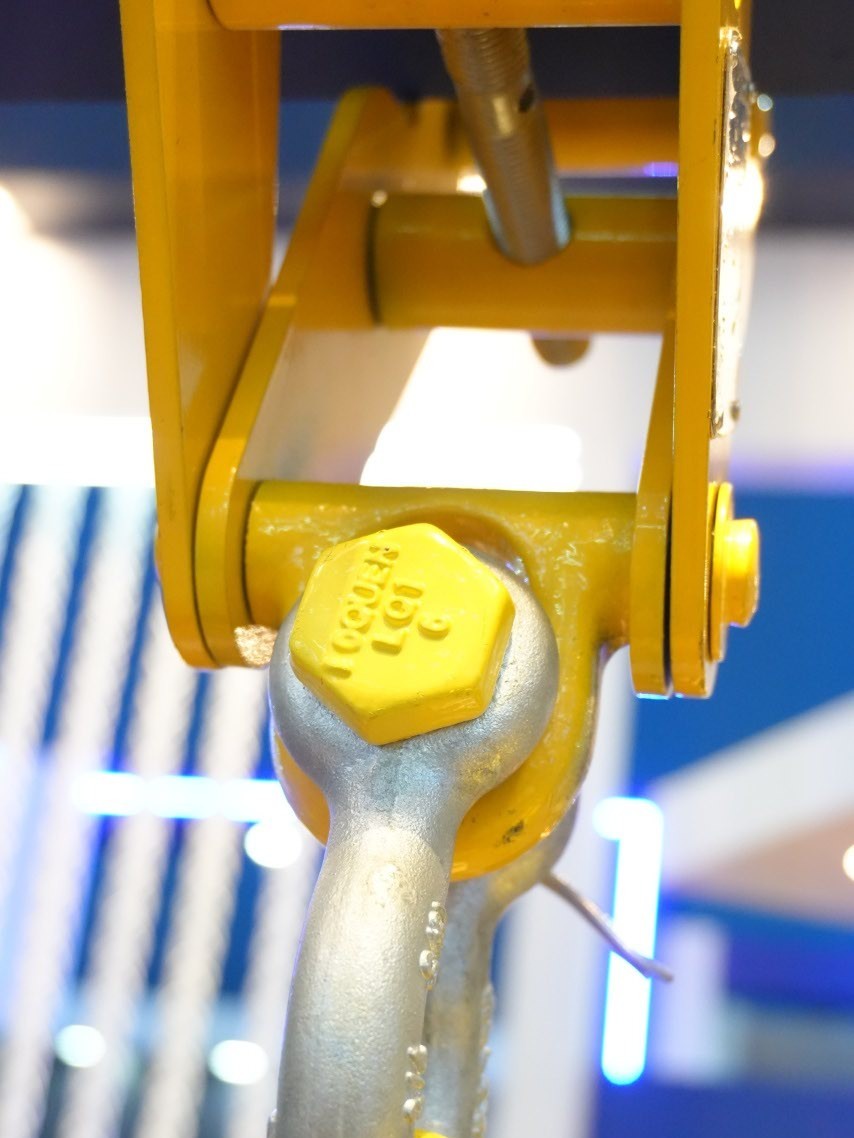

  • Centralized High-Safety Suspension Eye: Features a suspension eye designed to maintain the load in a central position, distributing forces evenly and helping prevent lateral movement under tension.

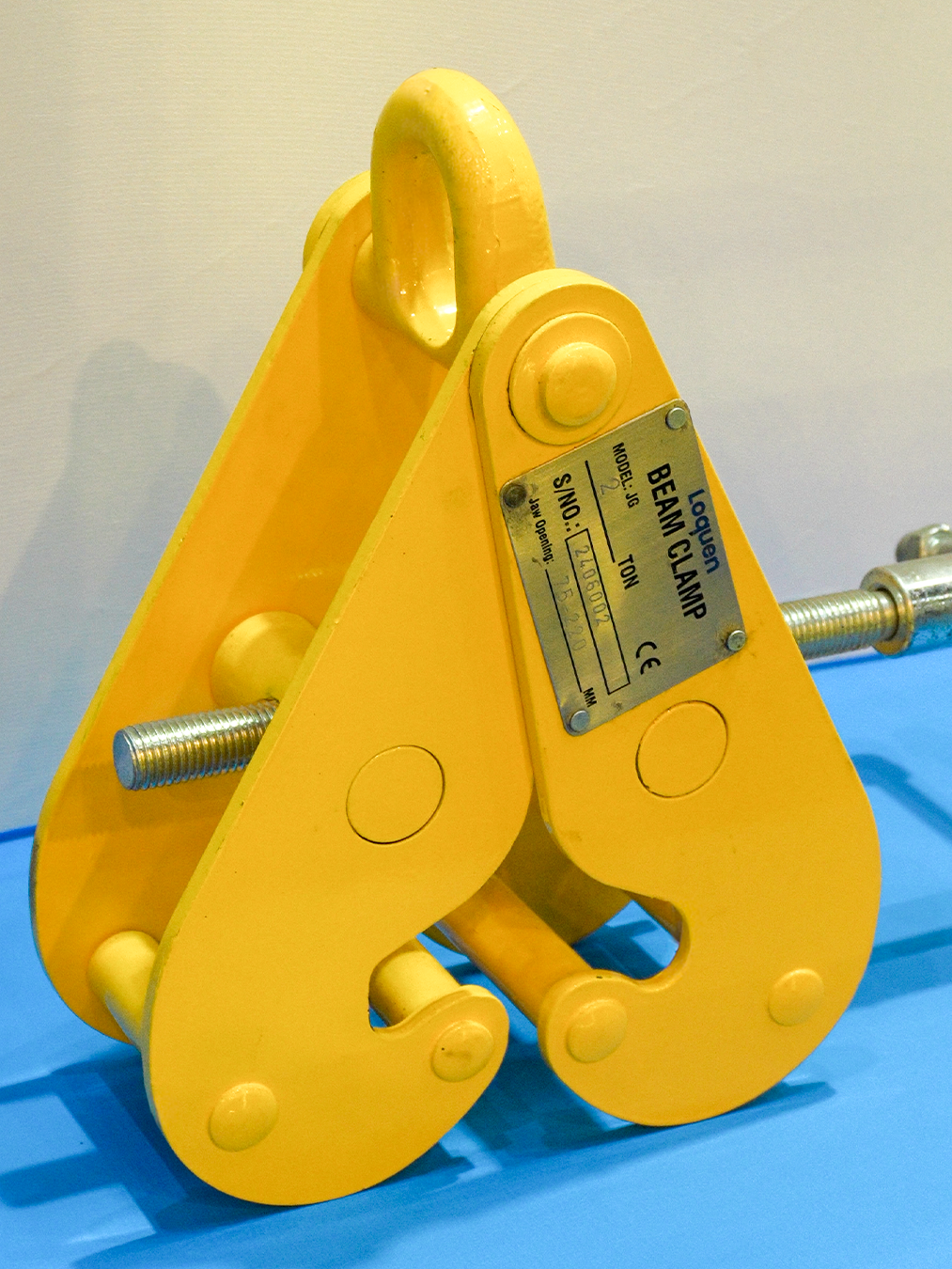

  • Secure Grip Geometry: The machined jaws are designed to effectively grip the beam profile, reducing stress concentration along the edge of the structural profile.






2. Load Range and Technical Specifications

The Loquen Beam Clamp range covers the main load capacities required for professional load-handling applications:

Stock No. Working Load Limit (WLL) Jaw Opening (A) Net Weight (kg)
LQ-74001 1.0 t 75–220 mm 3.8 / 4.2 kg
LQ-74002 2.0 t 75–220 mm 4.6 / 4.8 kg
LQ-74003 3.0 t 80–320 mm 9.0 / 9.2 kg
LQ-74004 5.0 t 80–320 mm 11.0 / 11.2 kg
LQ-74005 10.0 t 90–320 mm 16.0 / 16.2 kg

(Note: The jaw opening range varies within the 75–320 mm range according to the capacity of each model.)






3. Why Choose Loquen Rigging Solutions?

The Loquen Beam Clamp delivers reliable performance on the job site, combining ease of handling with superior mechanical strength. With rigorous manufacturing inspection, it helps ensure the stability of your lifting plan while reducing operational costs associated with temporary installations.






Need to create secure anchorage points on steel structures for your project? Talk to our load-handling specialists to specify the ideal Beam Clamp for your structure.
